Description

The Shure BLX14CVL Lavalier Wireless Microphone System is New Delivered to all areas of the UK using our roadie delivery service.

This system is ideal if you're a video producer who needs to record vocals from a distance. Lav mics are incredibly useful for stage and video use as they are small and therefore hard to see. They are also designed to pick up vocals while cutting out background frequencies, letting you get the sound you need. The problem with wired lav mics though is that you need to be within a short distance to plug them in. This is where the Shure BLX14CVL wireless lav mic set comes in handy.

Anytime Anywhere

Whether you are filming in a studio or out in the field, you never know when you'll suddenly need some distance between yourself and your subject. So instead of running long leads, why not use one of the most trusted digital wireless systems produced by Shure. This way, wherever you have power, you have wireless.

The Microphone

The CVL microphone is a tiny clip on condenser microphone that captures any kind of speech, from stage presentations to field reporting. The cardioid pattern keeps your sound directional, allowing you to easily pick up a single voice while minimising background noise. You can even use this microphone in poor conditions using the included windscreen. This protects your sound from wind and prevents plosives.

All Day Recording

Some people worry that you'll run out of battery with a wireless system and be caught out without a microphone. That's why Shure take battery life so seriously. With this pack, you can squeeze 14 hours of running time out of a single set of AA batteries.

You don't even have to worry about going out of range either, as you'll be able to harness up to 100m of wireless connectivity. Unless you plan on standing the full length of a football pitch away from your receiver, you'll be absolutely fine.

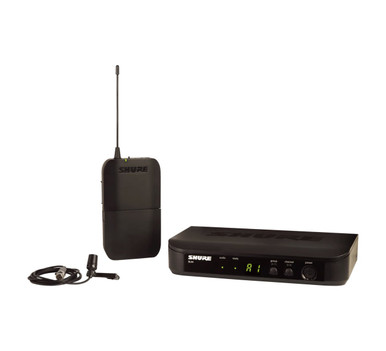

Included in the Box

• BLX4 wireless receiver
• BLX1 bodypack transmitter
• CVL lavalier microphone
• power supply
• lavalier clip
• windscreens
• user guide

Technical Specifications

• Working Range: 91 m (300 ft) Line of Sight
• Audio Frequency Response: 50 to 15,000 Hz
• Total Harmonic Distortion: Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical
• Dynamic Range: 100 dB, A-weighted, typical
• Operating Temperature: -18°C (0°F) to 57°C (135°F)
• Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.

• Gain Adjustment Range: 10 dB
• RF Transmitter Output: 10 mW, typical
• Dimensions: 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
• Weight: 7.7 oz. (218 g) without batteries
• Housing: Molded ABS
• Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
• Battery Life: up to 14 hours (alkaline)

BLX4

• Output Impedance (XLR connector): 200 Ω
• Output Impedance (6.35 mm (1/4") connector): 50 Ω
• Audio Output Level (XLR connector): –27 dBV (into 100 kΩ load)
• Audio Output Level (6.35 mm (1/4") connector): –13 dBV (into 100 kΩ load)
• RF Sensitivity: -105 dBm for 12 dB SINAD, typical
• Image Rejection: >50  dB, typical
• Dimensions: 1.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm) H x W x D
• Weight: 8.5 oz. (241 g)
• Housing: Molded ABS
• Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
