Description

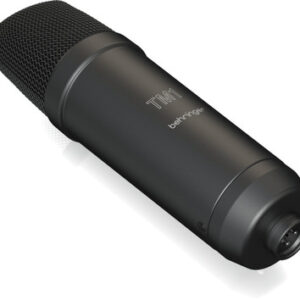

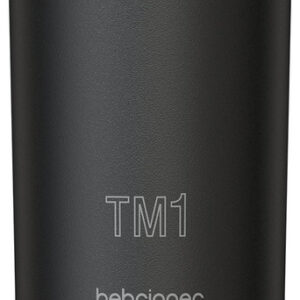

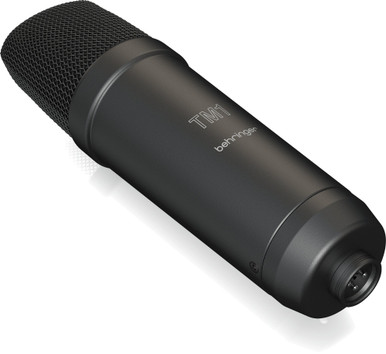

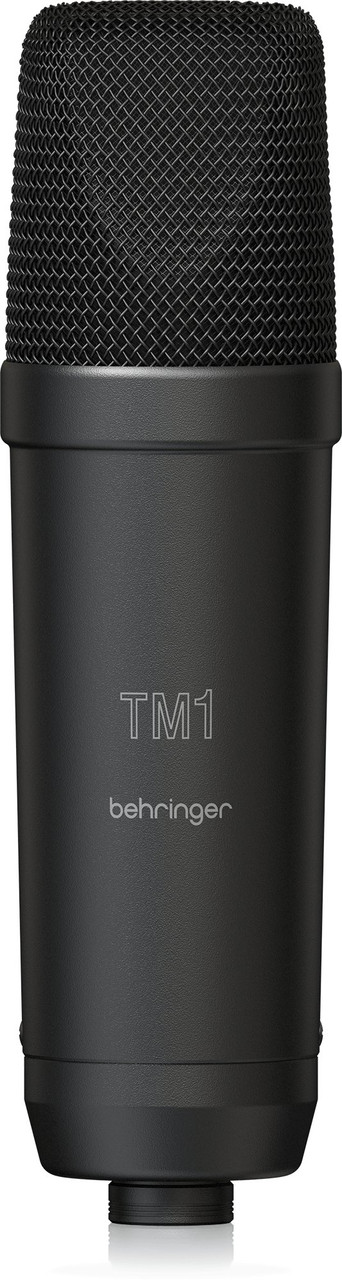

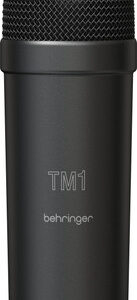

The TM1 large-diaphragm condenser microphone captures sound with superb realism, sensitivity, and precision. With a gold-plated diaphragm capsule and high-grade components, it offers clear audio through a cardioid pattern and a wide 132 dB dynamic range. The TM1 is perfect for a range of applications, from recording studios to broadcast stations. It comes complete with a heavy-duty shock mount and pop shield, a dust cover, and a 6 m professional-grade cable, making it a premium-quality, versatile microphone for any audio setup.
Key Features:
- Exceptional Clarity & Range:
Gold-plated 1.0” diaphragm delivers a broad 20 Hz – 20 kHz frequency range with excellent transient response. - Professional Cardioid Pattern:
Ideal for vocals and acoustic instruments, isolating sounds with detailed precision while minimising unwanted noise. - Complete Accessory Set:

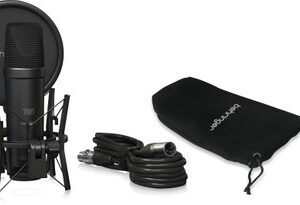

Includes a durable shock mount with integrated pop shield, dust cover, and 6 m microphone cable for ready-to-use convenience.
Specifications:
- Capsule: 34 mm (1.33 inch)
- Acoustic Principle: Pressure gradient
- Directional Pattern: Cardioid
- Electronics: JFET preamp with bipolar output stage
- Frequency Range: 20 Hz – 20 kHz
- Sensitivity: -34 dB ± 2 dB @ 1 kHz
- Equivalent Noise: 4.5 dBA SPL
- Maximum Input: 138 dB @ 1 kHz (≤ 1% THD)
- Dynamic Range: >132 dB
- Max SPL: 138 dB @ 1 kHz
- SNR: 88.5 dB SPL @ 1 kHz
- Power Requirement: +48 V phantom power
- Output Impedance: 100 Ohms ±30% @ 1 kHz
- Output Connection: 3-pin XLR, balanced
- Dimensions: 54 x 189 mm (2.1 x 7.4″)
- Net Weight: 354 g (0.8 lbs)
