MicPro take a look at the Behringer Ultravoice UV1 Mic Preamp, Voice Preamp & USB Interface, this New USB USB Microphones by Behringer. Available for delivery in the UK. Read More for details, images and how to order.

Here's What Behringer Say About the Ultravoice UV1 Mic Preamp

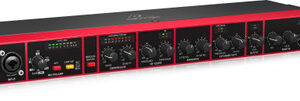

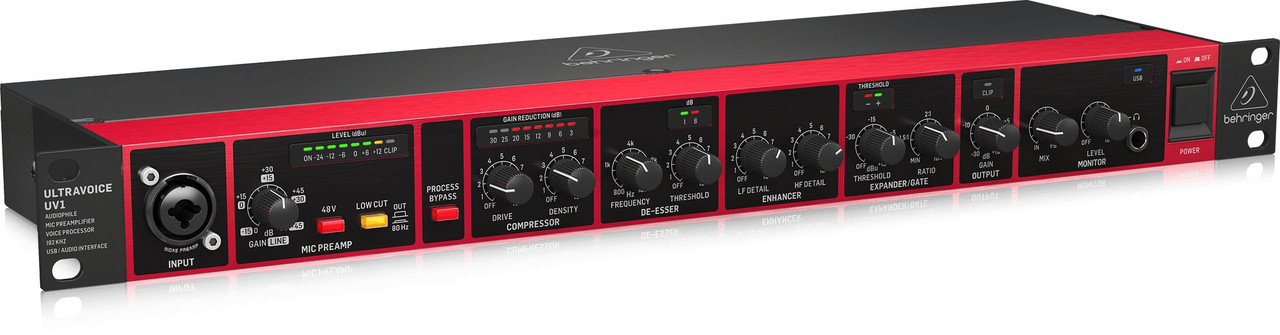

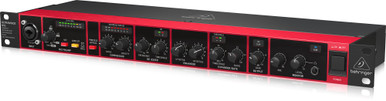

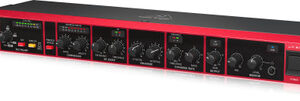

Ultravoice UV1

When it comes to vocals, sound engineers become critical and often prefer a channel strip over a mixing console because of its outstanding sound quality and flexibility. The ULTRAVOICE UV1 is a full-featured channel strip with high-end microphone preamplifier, versatile sound processing features, and the free choice to play out the processed sound via balanced analog outputs or pass it on to the internal USB interface.

Midas Mic Preamp – Legend Inside!

Did you know that Midas is one of the most recognized brands used by audio professionals around the world? Now you can get the gear the pros use! ULTRAVOICE UV1 comes with a state-of-the-art Midas microphone preamplifier with +48 V phantom power, ultra-low noise, high gain and audiophile quality.

Crystal Clear Signal Path at 192 kHz

The ULTRAVOICE UV1 is more than just a mic preamp and voice processor – we added one of the best USB audio interfaces with the highest possible resolution and lowest latency. Full 192 kHz sampling rate at a clear 24-bit resolution will make you smile listening to the astonishingly crisp sound you’ll get.

Zero Latency Monitoring

Recording the voice is one of the most critical tasks in the studio. Singers are very sensitive to delays. A few milliseconds can make all the difference between a good or a great take! So, we added this simple but very effective monitoring section to the ULTRAVOICE UV1. Blend between direct input signal and USB playback makes it easy to find the best balance while you're recording. Just plug in your headphones and adjust the volume.

Digital or Analog? – Both!

Some people prefer to stay in the analog domain, some prefer the shorter path to record directly to the digital. On the ULTRAVOICE UV1 you will get both – simultaneously!

Connect your PC or Mac directly via USB to get the best vocal sound without detours into your DAW. Connect any analog outboard equipment to the balanced outputs for further signal flow. It’s up to you.

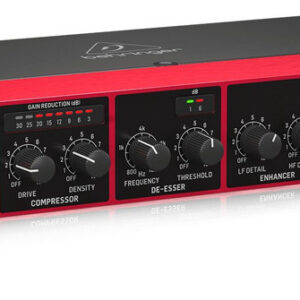

Sound P-R-O-C-E-S-S-I-N-G

A high-quality microphone preamp and a brilliant USB interface are the most important tools to integrate vocals perfectly into a song arrangement. Just press the BYPASS switch to get the pure experience.

But sometimes you want to pimp your vocals for the best result. And here we go! The ULTRAVOICE UV1 features all kind of processing you will need – a Compressor for more punch, a De-Esser to remove sibilants, an Enhancer for dynamic sound details at the lower and upper end of the frequency spectrum, an Expander/Gate to “mute” automatically unwanted surrounding noise and finally the amp to gain lost levels again.

And even if this would be not enough you can insert additional outboard gear for even more sound improvements.

Stage – Studio – Stream

It doesn’t matter what your target application is. The ULTRAVOICE UV1 is a perfect match for any environment where the best quality for your voice as a singer, narrator, moderator will be required. Put it in a live rack to go on tour, install it in a musical theater for the main artists, make it the center of your home studio or broadcast streaming environment, or unload your mixing console at the recording studio.

The ULTRAVOICE UV1 is the ideal solution for home or professional studios, or as part of a larger setup, on stage or on tour. Premium, ultra-low noise components and high headroom lets your music shine at its best – this is especially true for the most critical source: Vocals!

Specifications

Inputs

Mic input

• Discrete mic preamp
• Type: Balanced XLR/TRS combo connector
• Impedance: 4 kΩ
• Max input level: +17 dBu
• Equivalent input noise (EIN): -126 dBu, 20 Hz – 20 kHz, 150 Ω

Line in

• ¼" TRS, balanced
• Impedance: 10 kΩ unbalanced, 20 kΩ balanced
• Max input level: 30 dBu

Insert return

• ¼" TRS, balanced
• Impedance: 5 kΩ
• Max input level: +21 dBu

Outputs

• Balanced XLR, ¼" TRS
• Impedance: 100 Ω unbalanced, 200 Ω balanced
• Max output level: +20 dBu

Insert send

• ¼" TRS, balanced
• Impedance: 100 Ω unbalanced
• Max output level: +20 dBu

Controls

Mic preamp

• Gain: Mic: 0 to +60 dB, line: -15 to +45 dB
• 48 V: +48 V phantom power, switchable
• Low cut:  -18 dB/oct @ 80 Hz

Compressor

• Drive: Threshold, -40 dB to +20 dB
• Density:  1 to 75 dB/sec

De-Esser

• Frequency:  800 Hz to 10 kHz
• Threshold: Program-dependent
• Release time: Program-dependent, approx. 1 ms/dB

Enhancer

• LF/HF detail:  Min to max boost (0 dB to +12 dB)

Expander/Gate

• Threshold: Off to +15 dB
• Ratio: 1:1 to 10:1

Output

• Output gain: -30 to +10 dB

Monitor

• Mix: Blend direct signal and playback
• Level: -∞ to +6 dB

System

• Frequency response: <10 Hz to 80 kHz (0/-3 dB)
• Dynamic range: 110 dB, A-weighted

USB

• Type: USB 2.0, type B
• Interface: 2 in / 2 out
• Converter: 24-bit
• Sample rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
• Supported operating systems: Windows 10 / Mac OS X 10.4 or higher
• Drivers: Windows driver available on behringer.com, no drivers needed for Mac

Power

• Switch-mode autorange power supply: 100-240 V, ~50/60 Hz
• Power consumption: 15 W
• Mains connection: Standard IEC connector

Physical

• Standard operating temperature range: 5° C – 45° C (41° F – 113° F)
• Dimensions : 483 x 150 x 44 mm (19 x 5.9 x 1.7")
• Weight: 1.5 kg (3.3 lbs)
