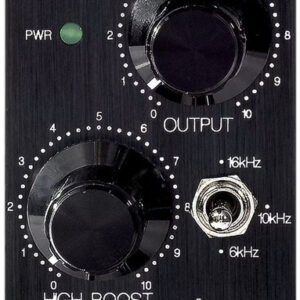

Lindell Audio 6X500VIN 1 Channel Transformer Vintage Coupled Mic Pre / EQ 500 SERIES - Image 3
Lindell Audio 6X500VIN 1 Channel Transformer Vintage Coupled Mic Pre / EQ 500 SERIES - Image 1 Lindell Audio 6X500VIN 1 Channel Transformer Vintage Coupled Mic Pre / EQ 500 SERIES - Image 2 Lindell Audio 6X500VIN 1 Channel Transformer Vintage Coupled Mic Pre / EQ 500 SERIES - Image 3

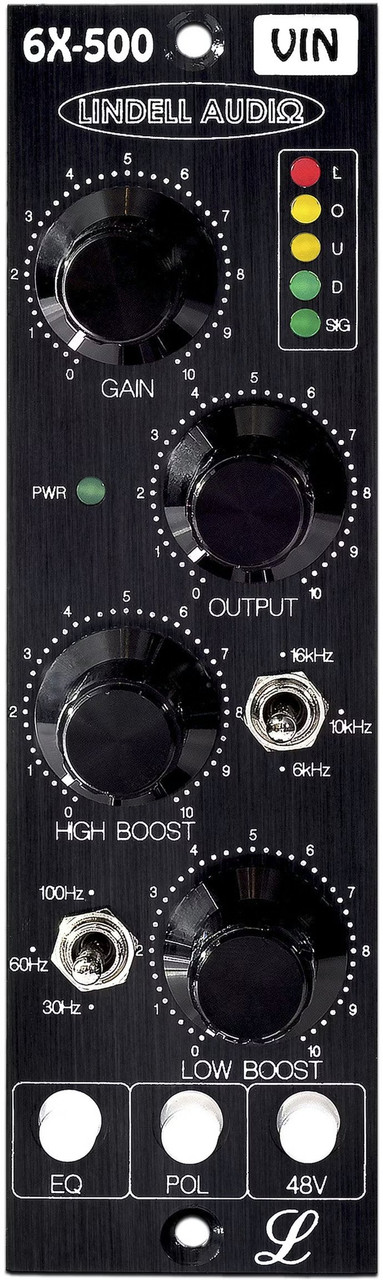

Lindell Audio 6X500VIN 1 Channel Transformer Vintage Coupled Mic Pre / EQ 500 SERIES

£322.00

This is the Lindell Audio 6X500VIN 1 Channel Transformer Vintage Coupled Mic Pre / EQ 500 SERIES from Lindell, available now in Microphone Preamps category on MicPro. Read More below.

Category:
Tags:
Brands:

As an affiliate partner, we may earn a small commission when you buy through our links — at no extra cost to you.

Description

Lindell Audio’s Vintage take on the magical classic Pultec design

The 6X-500VIN “Vintage Edition” juices your 500 Series rack with a single-channel transformer-coupled mic preamp along with a passive 2-band Pultec-style equalizer.

This all-discrete design, based upon the highly respected Vintage 1731 amplifier, gives you an EQ section with the magical sound of a classic Pultec. With a 15db boost of the silkiest high end you’ll ever hear and stunningly punchy low end, you’ll wonder how Lindell managed to stuff a Pultec into this little module.

Arm your studio with the fast, in-your-face sound of the delightfully affordable 6X-500VIN.

Specifications:

  • Transformer coupled Balanced inputs and Balanced Outputs
  • Up to 65db of Gain
  • Passive Pultec Equalizer. Inductor + 990 gain make-up amplifier
  • 3 Step Switched EQ Low Freq Boost 30Hz, 60Hz, 100Hz +/-10%
  • 3 Step Switched EQ High Freq Boost 6kHz, 10kHz, 16kHz +/-10%
  • Selectable High Boost Bandwidth on PCB
  • Polarity Reverse
  • Pin Compatible with 990&2520 type op-amps
  • 48V Phantom Power
  • All discrete Vintage OPA1731
  • 5-LED VU Meters
  • Gold Plated PCB

Brand

Lindell

Lindell is represented in the current MicPro catalogue by RE51 and 6X500VIN microphone preamp or EQ units. The listed range is relevant to 500-series microphone front-end processing. When comparing these products, check format, gain, EQ, transformer or colour options, input and output, phantom power and chassis compatibility. It is relevant to engineers expanding a modular rack with dedicated gain and tone-shaping stages. This description is kept catalogue-led, so the individual model listing remains the source for exact specifications, compatibility and included accessories.

Category

Microphone Preamps

Microphone preamps raise a low-level microphone signal to a usable line or converter level while adding gain, headroom and the character of the input stage. Compare available gain, equivalent input noise, input impedance, phantom power, pad, polarity or phase, metering, transformer or valve stages and any built-in EQ or compression. The catalogue includes standalone, rack, 500-series and multi-channel designs, so confirm the format and connections before purchase. A preamp should match the microphone’s output and the rest of the recording chain without adding unnecessary noise or gain stages.

Tags

Preamp

Preamp identifies equipment that raises a microphone signal to a stronger line or converter level. Compare gain, noise, headroom, impedance, phantom power and connections.
