Description
Here’s what Mojave have to say:

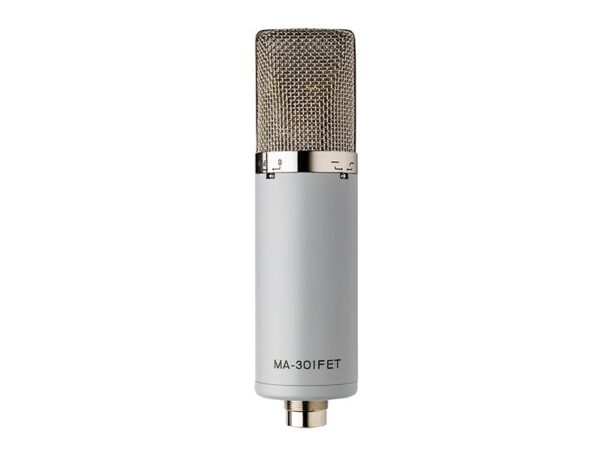

The MA-301fetVG is a multi-pattern large diaphragm, solid-state condenser microphone. Based upon the popular MA-201fetVG designed by David Royer, the MA-301fetVG adds a 3-position pickup pattern selector, a 15dB pad, and a switchable bass roll-off.
Utilizing a 3-micron gold-sputtered duel-diaphragm capsule, high-quality Jensen audio transformer, military-grade FET, and custom-designed low-noise resistors, the MA-301fetVG performs at a level reminiscent of some of the best-loved classic condenser microphones. Each MA-301fetVG microphone is carefully tested and evaluated, then packaged in its protective case with a professional grade shockmount.
In the Box
- Carrying Case
- MA-301fetVG Microphone

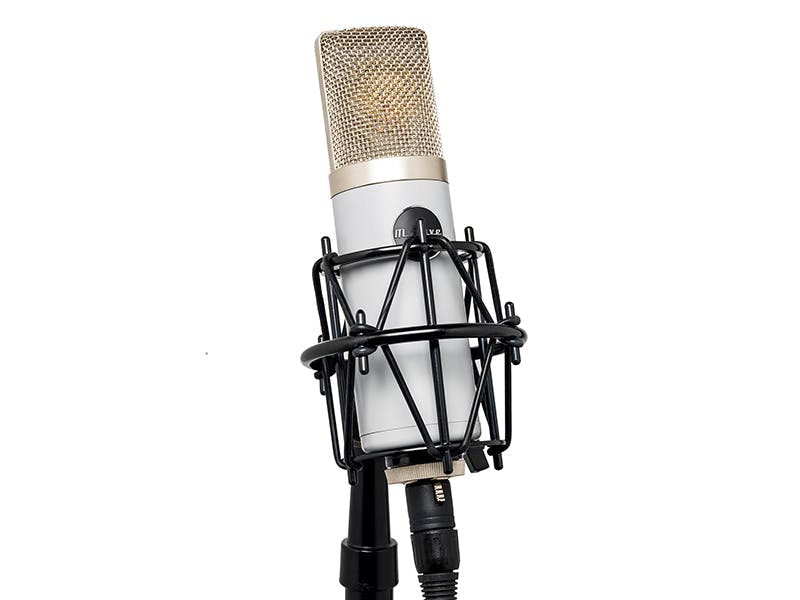

- Shock Mount
Specifications
- Transducer Type: Externally polarized, pressure gradient capacitor – double diaphragm.
- Diaphragm: 1-inch diameter, gold sputtered
- Diaphragm Thickness: 3 microns
- Polar Pattern: 3 patterns; omni, cardioid and figure-8
- Frequency Response: 20 Hz to 20 KHZ, +/-3 dB at “flat” setting of bass cut switch. Bass cut switch provides 6 dB per octave attenuation below 100 Hertz in “cut” setting
- Sensitivity: -40.5 dB, re. 1V/pa
- Maximum SPL: 120 dB with pad off, 135 dB with pad on.
- Distortion: < 1% @ 120 dB SPL , < 3% @ 134 dB SPL with pad off, < 1% @ 134 dB SPL, < 3% @ 148 dB SPL with pad on
- Self Noise: 14dB nominal, not to exceed 16dB (A weighted)
- Pad: 15 dB
- Bass Cut: 6 dB per octave below 100 hertz.
- Impedance: 550 ohms, transformer balanced (Jensen)
- Powering: 48VDC phantom power; current 1.2 mA
- Carrying case with microphone, shock mount: 10″ x 9″ x 4.5″, 4 lbs.
- Microphone: 7 5/8″ X 2″ (194mm x 51mm), 1 lb. (0.45Kg)
