Description
Throughout the decades, Neumann have consistently been the world leaders in studio microphones. Practically every major hit song from the last 40 years will feature Neumann mics in some way!
Pro Quality Recording

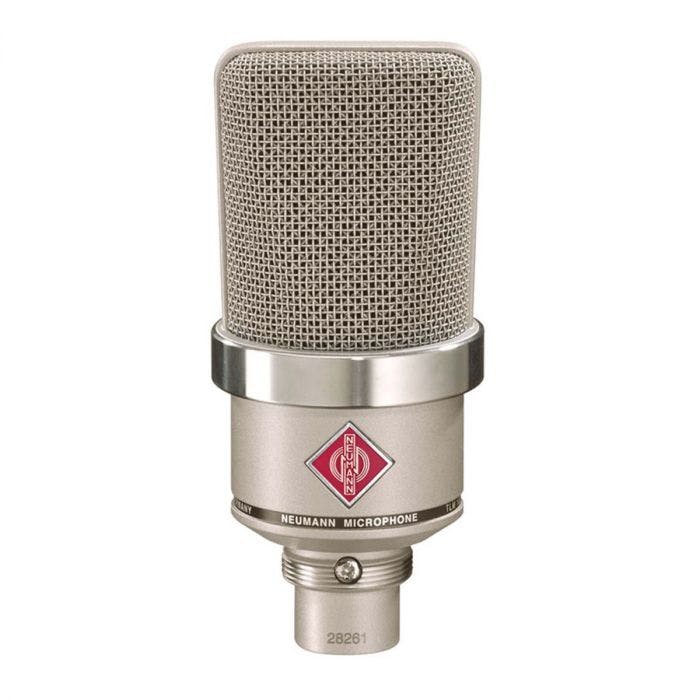

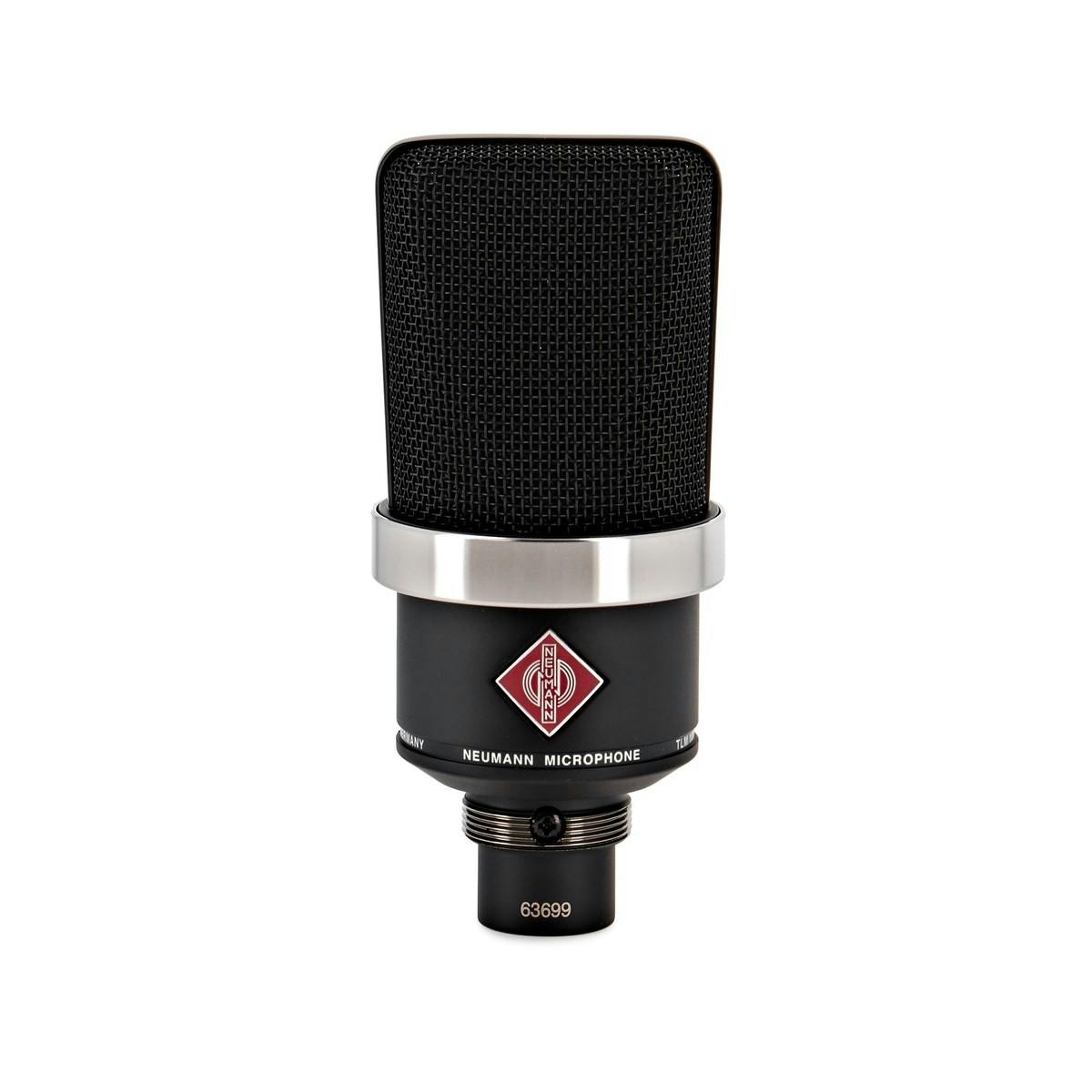

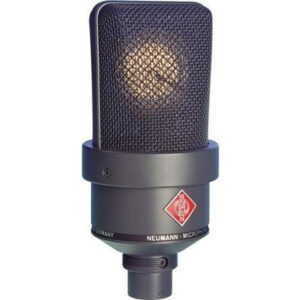

The TLM 103 is the ideal large diaphragm microphone for all professional and semi-professional applications requiring the utmost in sound quality on a limited budget.
By utilizing the tried and true transformerless circuit found in numerous Neumann microphones, the TLM 103 features yet unattained low self-noise and the highest sound pressure level transmission. The capsule, derived from that used in the legendary U87, has a cardioid pattern, is acoustically well balanced and provides extraordinary attenuation of signals from the rear.

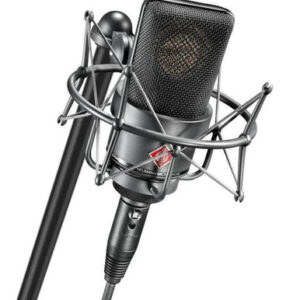

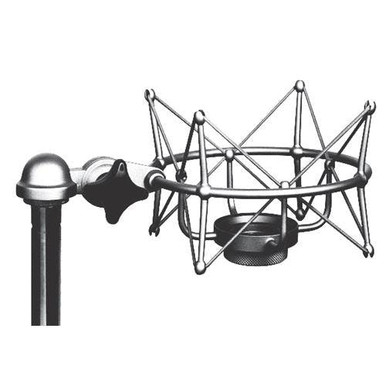

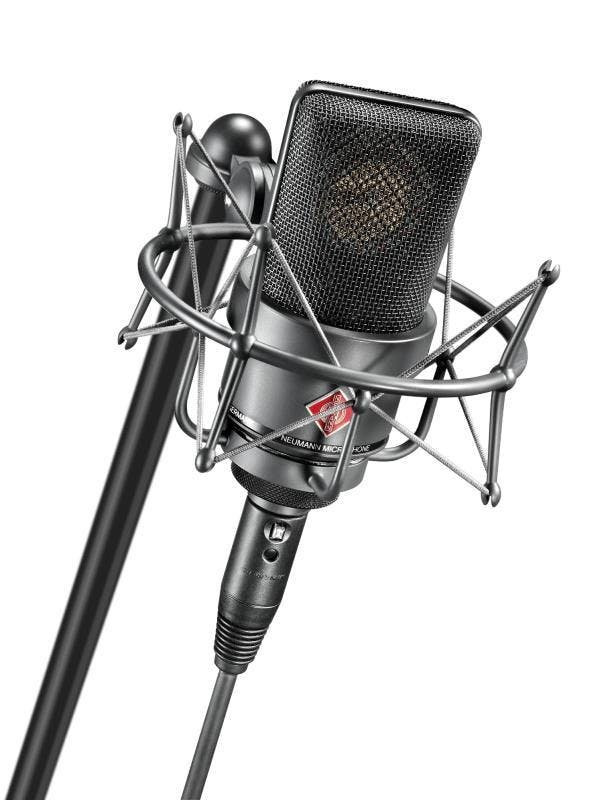

The EA1N Shock Mount is designed for the TLM 103, TLM 193 and M 147 Tube microphones. It has a swivel mount with a 5/8"-27 female thread that can be fastened to tripods. Included is a threaded adapter to connect to 1/2"- and 3/8" studs.
The perfect combination at a great price!
In the Box
- Neumann TLM 103
- Shockmount
- Threaded Adapter
Technical Specifications
- Acoustical operating principle: Pressure gradient transducer
- Directional Pattern: Cardioid
- Frequency Range: 20 Hz – 20 kHz
- Sensitivity at 1 kHz into 1 kohm: 23 mV/Pa = –32.5 dBV ± 1 dB
- Rated Impedance: 50 ohms
- Rated load impedance: 1 kohms
- Equivalent noise level, CCIR : 17.5 dB
- Equivalent noise level, A-weighted : 7 dB-A
- Maximum SPL for THD 0.5%: 138 dB
- Signal-to-noise ratio, CCIR (re. 94 dB SPL): 76.5 dB
- Signal-to-noise ratio, A-weighted (re. 94 dB SPL): 87 dB
- Maximum output voltage: 13 dBu
- Supply voltage (P48, IEC 61938): 48 V ± 4 V
- Current consumption (P48, IEC 61938): 3 mA
- Matching connector: XLR 3 F
- Weight: approx. 450 g
- Diameter: 60 mm
- Length: 132 mm
