Description
The Mini K47x combines the circuit magic of Rosswell’s Mini K67x with the K47 capsule. This unique blend delivers midrange detail from the K47 capsule and tube-like harmonic saturation from the transformer circuit, offering a distinctive sound reminiscent of classic European tube microphones. The Mini K47x captures the essence of recording to tape, providing rich harmonic complexity and warmth.
Stereo Pair:
Rosswell have matched these mics to 0.5dB in sensitivity (measured at 1kHz), and 1.5dB (or better) in frequency response, 50Hz–15kHz.
Unique Combination of Capsule and Circuit:
The Mini K47x blends the midrange detail of the K47 capsule with tube-like harmonic saturation from its transformer circuit, offering a distinctive sound reminiscent of classic European tube microphones.
Award-Winning Design:
Winner of the "Editor's Choice" award at NAMM 2023, the Mini K47x captures the essence of recording to tape, providing rich harmonic complexity and warmth.
Premium Construction and Accessories:

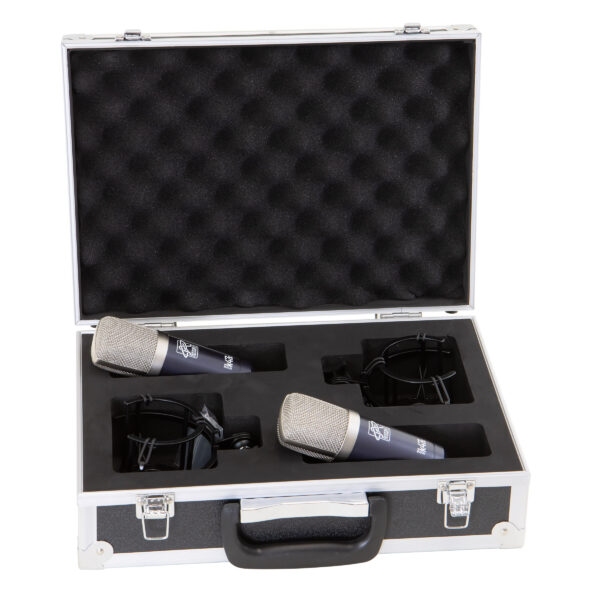

Assembled and tested in California, the Mini K47x features a durable metallic paint finish in Metallic Indigo, accompanied by an exclusive Cutaway shockmount, Roswell branded microfleece mic sock, and upgraded flight case.
Key Features:
- Large-diaphragm.
- Vintage circuit design with Roswell T7 output transformer.
- Handpicked capacitors ensure a low noise floor.
Specifications:
- Polar Pattern: Cardioid
- Capsule: 34mm O.D. True Condenser, single-backplate K47
- Frequency Range: 20 – 20,000 Hz
- Sensitivity: 12 mV/Pa
- Impedance: 200 Ohms
- Signal-to-noise: 81 dBA
- Equivalent noise: 13 dBA
- Supply voltage: 48±4 VDC
- Output: Transformer balanced
- Physical dimensions: 150mm × 44mm (Each)
- Weight: 380g (Sach)
