Description

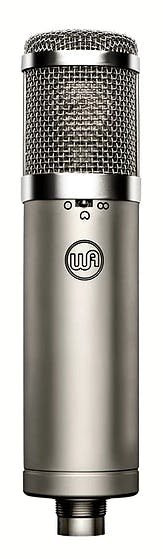

The Warm Audio WA-47JR Vintage FET Microphone is currently retailing at GBP 225 and it is preorder. Available to be delivered to you by post direct (some charge may apply).The team at Mic Pro think that Warm Audio nailed it with the Warm Audio WA-47JR Vintage FET Microphone.

Here's what Warm Audio say about the WA-47JR Vintage FET Microphone:

Like Father. Like Son.

The WA-47jr is an FET transformerless version of the highly renowned classic ‘47 microphone that has been used on countless hit records for the last 50+ years.  The WA-47jr utilizes the same "true '47" k47 style capsule found in our flagship WA-47 tube condenser microphone.  The WA-47jr is fully discrete, has 3 polar patterns and is designed for pro studio, home studio, live, and broadcast applications.  The WA-47jr sounds great on vocals, acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass/woodwind instruments, and an array of other sources.

Quality components make a better mic.

The WA-47jr proudly utilizes a custom k47 style capsule reproduction, designed with the same hole pattern and frequency response as the vintage part.  Our version of this capsule (model# WA-47-B-80v) is carefully manufactured by an Australian capsule manufacturer with careful precision and repeat-ability.  The WA47jr's low-noise and discrete signal path then paired with an excellent true '47 style capsule allows this mic to obtain a very similar tone to the classic ‘47 microphone at a much lower price tag.

Package Includes

Microphone, Shockmount, Hardmount, Zipper storage pouch.

3 Polar Patterns

Cardiod, Figure-Of-Eight & Omnidirectional

High Pass Filter

A 70hz high pass filter is available for reducing rumble and other subsonic information.

-10dB Pad

A -10dB pad switch is available on the WA-47jr.  The pad exists internally within the active circuitry.

Specifications

• FET transformerless '47 style condenser microphone.
• Custom true '47 capsule reproduction (k47 style) – Model# WA-47-B-80v.
• Capsule makeup: Gold sputtered, dual large diaphragm, single backplate, 6 microns NOS mylar (PET film).
• Fully discrete signal path, Toshiba FET’s, Wima film capacitors, Panasonic electrolytic capacitors.
• Polar Patterns: Cardioid, figure-of-eight, and omnidirectional.
• High-pass filter: 70Hz
• Pad: -10db
• Self-noise: 9dBA
• Dynamic range: 138dBA
• Maximum SPL: 147/157dB (@1kHz 1kOhms 0.5% THD, 0/-10dB)
• Frequency Range: 20 Hz~20 kHz
• Sensitivity: 10mV/Pa or -40dB
• Output Impedance: 100 ohms
• Rated Load Impedance: ≥1kOhms
• Maximum output: 16dBu @1kHz, 1kOhms, 0.5% THD
• S/N Ratio: 85dBA (IEC651)
• Equivalent Noise: 9dBA (IEC651)
• Dynamic Range: 138dBA (IEC651)
• 48v phantom powered
