Name: Sennheiser EW-DX SKM-S Handheld Transmitter With Switch No Capsule (U1-5)
Brand: Sennheiser
SKU: 509419
Availability: InStock

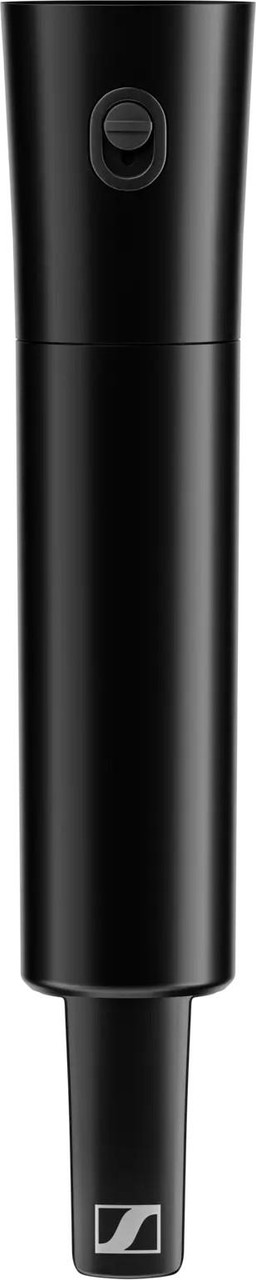

Sennheiser EW-DX SKM-S Handheld Transmitter With Switch No Capsule (U1-5)

£389.00

Category: Microphones

Brands: Sennheiser

As an affiliate partner, we may earn a small commission when you buy through our links — at no extra cost to you.

Description

The Sennheiser EW-DX SKM (U1/5) Handheld Transmitter is a digital UHF transmitter body designed for Evolution Wireless Digital systems. Built without a power switch for tamper-resistant operation, it features a rugged metal housing and the Sennheiser Standard Capsule Interface to support a wide range of Sennheiser and Neumann microphone heads (capsule not included). A persistent E-Ink display keeps vital information visible even with the batteries removed, while charging contacts enable in-device charging for streamlined turnarounds. Powered by the BA 70 lithium-ion battery (sold separately), it delivers up to 12 hours of runtime. The SePAC codec provides a massive 134 dB input dynamic range, eliminating transmitter gain staging and keeping audio pristine from whisper to roar. Network-ready software, including Sennheiser Control Cockpit, Wireless Systems Manager, and the Smart Assist App, simplifies deployment and remote monitoring. With fixed 10 mW RF power, 1.9 ms latency, and up to 88 MHz switching bandwidth, EW-DX SKM offers dependable performance for education, corporate, and live production.

Key Features:

134 dB Input Dynamic Range:
SePAC delivers a 134 dB input dynamic range, removing transmitter gain staging and preserving detail from whisper-quiet speech to powerful vocals and instruments.
Always-On Display & Charging:
Persistent E-Ink keeps key parameters visible without power, while charging contacts enable drop-in in-device charging with CHG 70N and BA 70 for up to 12 hours.
Network-Ready, Rapid Deployment:
Integrates with Sennheiser Control Cockpit, Wireless Systems Manager, and Smart Assist App for remote monitoring, rapid setup via equidistant spacing, and reliable 10 mW UHF performance to 100 metres.

Specifications:

Model: EW-DX SKM (U1/5) handheld transmitter (power switch)
Compatibility/Bandwidth: Evolution Wireless Digital (EW-DX family); up to 88 MHz switching bandwidth
Capsule Interface: Sennheiser Standard Capsule Interface (microphone capsule not included)
RF Output & Range: 10 mW fixed; up to 100 metres / 328 ft (environment dependent)
Latency: 1.9 ms
Input Dynamic Range: 134 dB (Sennheiser Performance Audio Codec – SePAC)
Display: Persistent E-Ink “always on” status read-out
Low-Cut Filter: Off, 30, 60, 80, 100, 120 Hz
Audio Functions: Digital audio trim; test tone generator
User Interface: Function buttons with lock; switchable status LED (On/Off)
Power & Runtime: BA 70 Li-ion battery, up to 12 hours (sold separately)
Charging: In-device contacts; supports CHG 70N, L 70 USB, LM 6070 (for L 6000)
Dimensions: 40 × 200 mm (without capsule); 50 × 268 mm (with MMD 835)
Weight & Housing: 450 g; rugged metal body
Usage: Worldwide operation, subject to local RF regulations
