Description
Here's what Sennheiser say about the XSW 2-ME2-GB
Inspire your audience. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

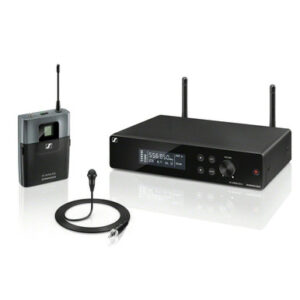

The XS Wireless 2 Lavalier mic set is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobtrusive clip-on microphone. Metal receiver housing and rackmount kit included.
GB-Range: 606 – 630 MHz
Key Features
- Unobtrusive clip-on microphone for hands-free operation and compact bodypack transmitter
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronisation via remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
Included in the Box
- 1 receiver EM-XSW 2

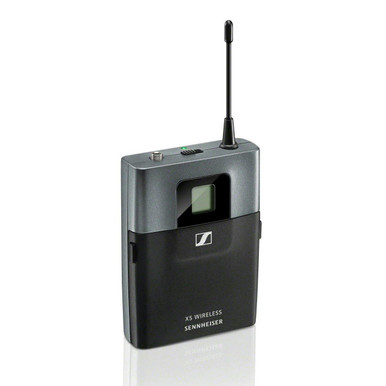

- 1 bodypack transmitter SK-XSW

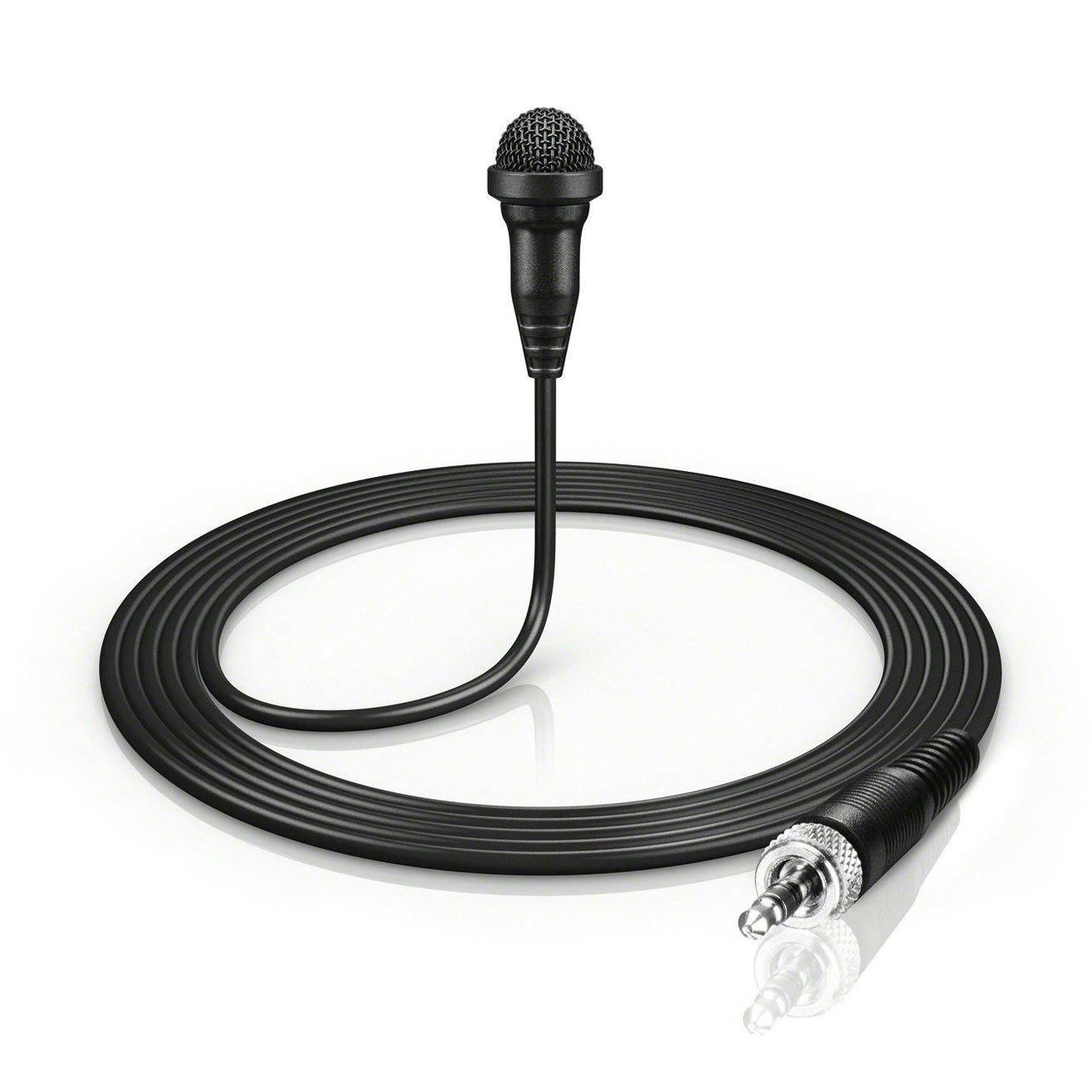

- 1 lavalier microphone ME 2-2
- 1 power supply NT 12-5 CW
- 2 AA batteries
- 1 rackmount kit
- 1 pouch
- user manual
Technical Specifications
Receivers
- Dimensions: approx. 200 x 42 x 127 mm
- Weight: approx. 680g
- Power supply: 12 V DC nom. / 300 mA
- Housing: Metal
- AF frequency response: 50 to 16,000 Hz
Transmitter
- Dimensions: approx. 71 x 96 x 28 mm
- Weight: approx. 95g
- Operating time: approx. 10 hrs
- Power supply: 2 AA size batteries, 1.5 V
- Housing: Robust ABS
- AF frequency response: 50 to 16,000 Hz (–3 dB)
- Microphone: Condenser
- Frequency response: 50 to 16,000 Hz (–3 dB)
- THD, total harmonic distortion: ≤ 0.9%
- Pick-up pattern: Omni-directional
- Signal-to-noise ratio: ≥ 103 dBA
- RF output power: 10 mW
- Switching bandwidth: up to 24 MHz
- Modulation: Wideband FM
- Output voltage: '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Diversity reception: True Diversity
- Frequency: 8 frequency banks, each with up to 12 factory-preset channels
- Frequency range: GB: 606-630 MHz
- Sensitivity: < 3 μV at 52 dB(A)rms S/N
- Squelch: switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
- Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
- Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range: 40 dB, adjustable in 5-dB steps
- Line / Mic level: 20 dB, switchable
- Temperature Range: – 0°C to +40°C (Operation), –20°C to +70°C (Storage)
- Receiver Principle: Double superheterodyne
