Description
Here's What Shure Say About the SLXD24D/B58

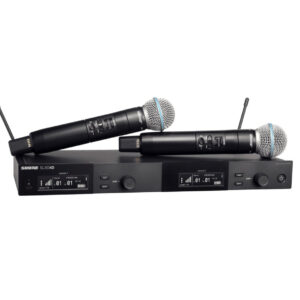

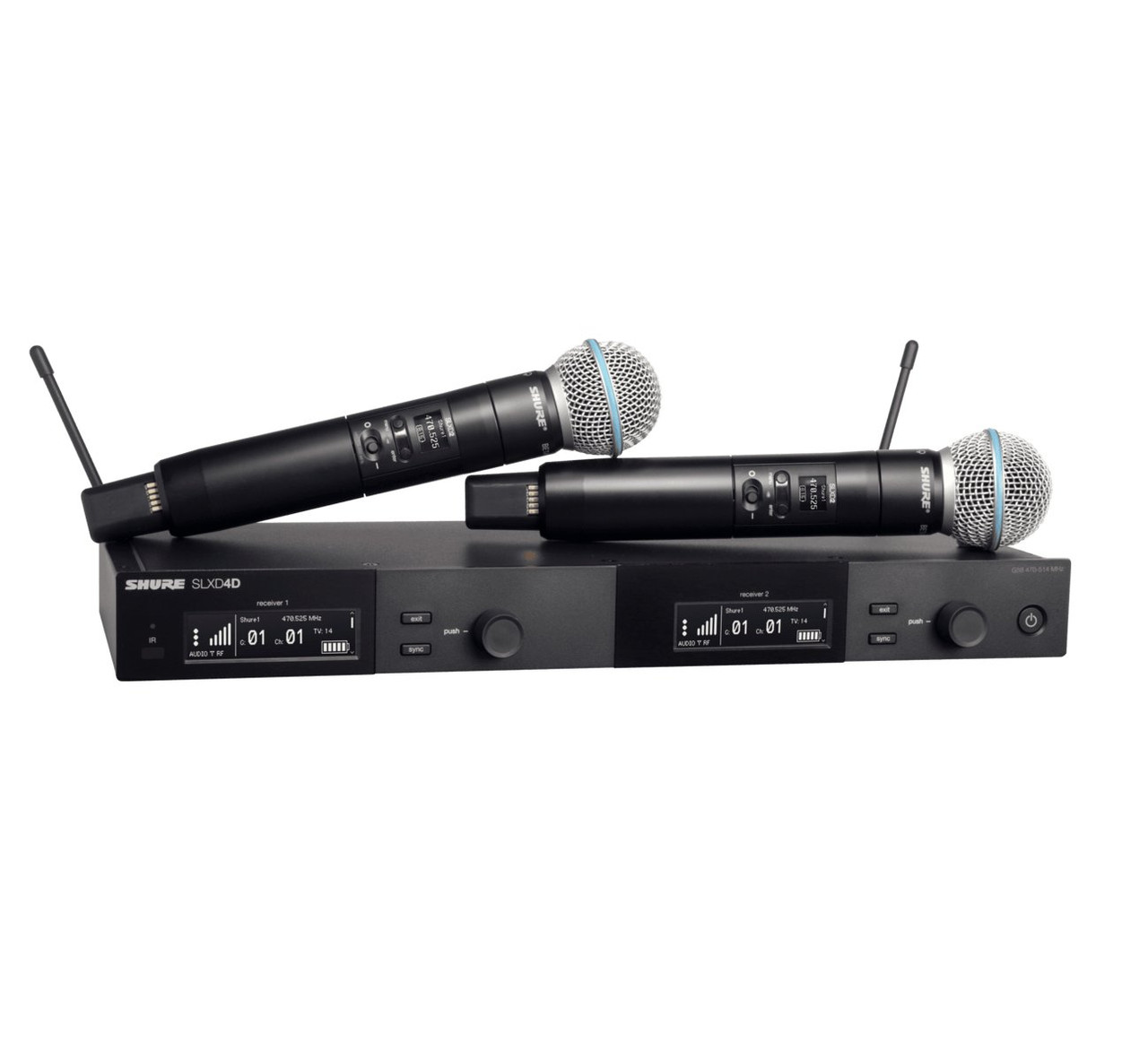

The SLXD24D/58 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4D dual-channel receiver and two SLXD2/B58 handheld transmitters with antenna and rackmount accessories and 4 AA batteries.
Specifications
RF
- RF Carrier Frequency Range: 470–937.5 MHz, varies by region (See Frequency Range and Output Power table)
- Working Range: 100 m ( 328 ft)
- RF Tuning Step Size: 25 kHz, varies by region
- Image Rejection: >70 dB, typical
- RF Sensitivity: −97 dBm at 10-5 BER
Audio
- Latency: 3.2 ms
- Audio Frequency Response: 20 Hz– 20 kHz (+1, -2 dB)
- Audio Dynamic Range: 118 dB at 1% THD, A-weighted, typical
- Total Harmonic Distortion: <0.02%
- System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (with respect to the ring of the 6.35 mm output) output.
- Mic Offset Range: 0 to 21 dB (in 3 dB steps)
Temperature Range
- Operating Temperature Range: -18°C (0°F) to 50°C (122°F)
- Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
